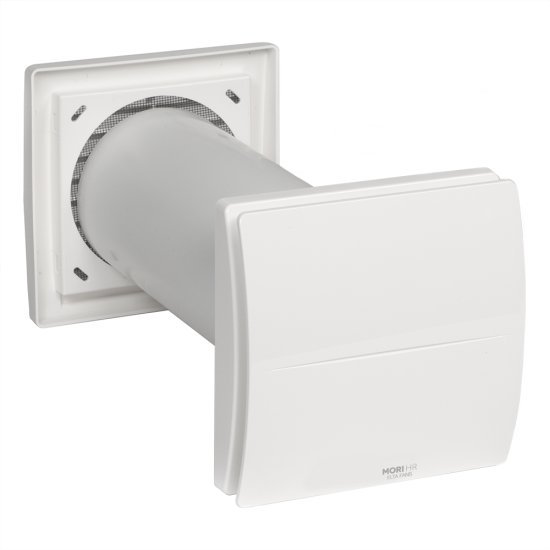

Elta Mori HR100 – Continuous Running Alternate Flow Heat Recovery Fan
Elta Mori HR100 Continuous Running Alternate Flow Heat Recovery Fan is continuously running, low energy, ultra quiet, alternate flow supply and extract fan with heat retention for use in habitable areas such as living rooms, bedrooms, dining rooms, basements and hallways.
The unit helps a room breathe and reduces indoor air pollutants and humidity levels. The unit is ideal for tackling problems associated with condensation dampness such as mould growth. The unit is not designed for use in ‘wet areas’ such as bathrooms or kitchens.
A continuously running, low energy, ultra quiet, alternate flow supply and extract fan with heat retention for use in habitable areas such as living rooms, bedrooms, dining rooms, basements and hallways.
Core hole needs to be 107mm
Elta Mori HR100 - Application
Elta Mori HR100 Continuous Running Alternate Flow Heat Recovery Fan a continuously running, low energy, ultra quiet, alternate flow supply and extract fan with heat retention for use in habitable areas such as living rooms, bedrooms, dining rooms, basements and hallways.
The unit helps a room breathe and reduces indoor air pollutants and humidity levels. The unit is ideal for tackling problems associated with condensation dampness such as mould growth.
Elta Mori HR100 - Operation
Every 70 seconds the unit alternates between supply and extract fan modes. When in extract mode the units high efficiency ceramic heat exchanger collects and retains heat from the extracted air. The majority of this heat is then transferred to the incoming air during supply mode.
This method of operation avoids the short circuiting of air that can often happen with conventional single room heat recovery units, resulting in much more effective room ventilation.
Units can also be set to work in harmony with each other e.g. when a unit in one room is extracting air another unit in another room can be set to supply air. This can greatly enhance cross ventilation and ventilation effectiveness in a home.
Elta Mori HR100 - Technical Specifications
- Inner ventilation unit material: high quality, impact and UV-resistant ABS colour RAL 9010.

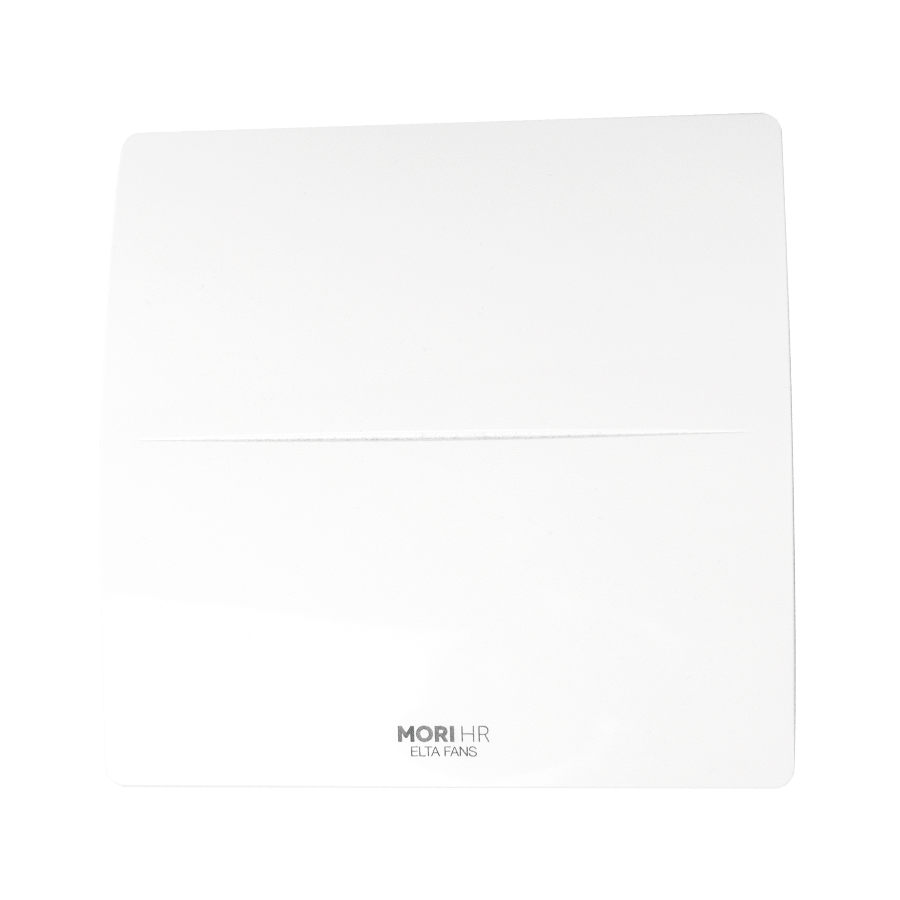

- Design front cover removable for cleaning without the use of tools.
- Easy maintenance installation plate, for easy access to the heat exchanger from inside the room.
- Anti-dust filter, easily removable for washing by the user without tools.

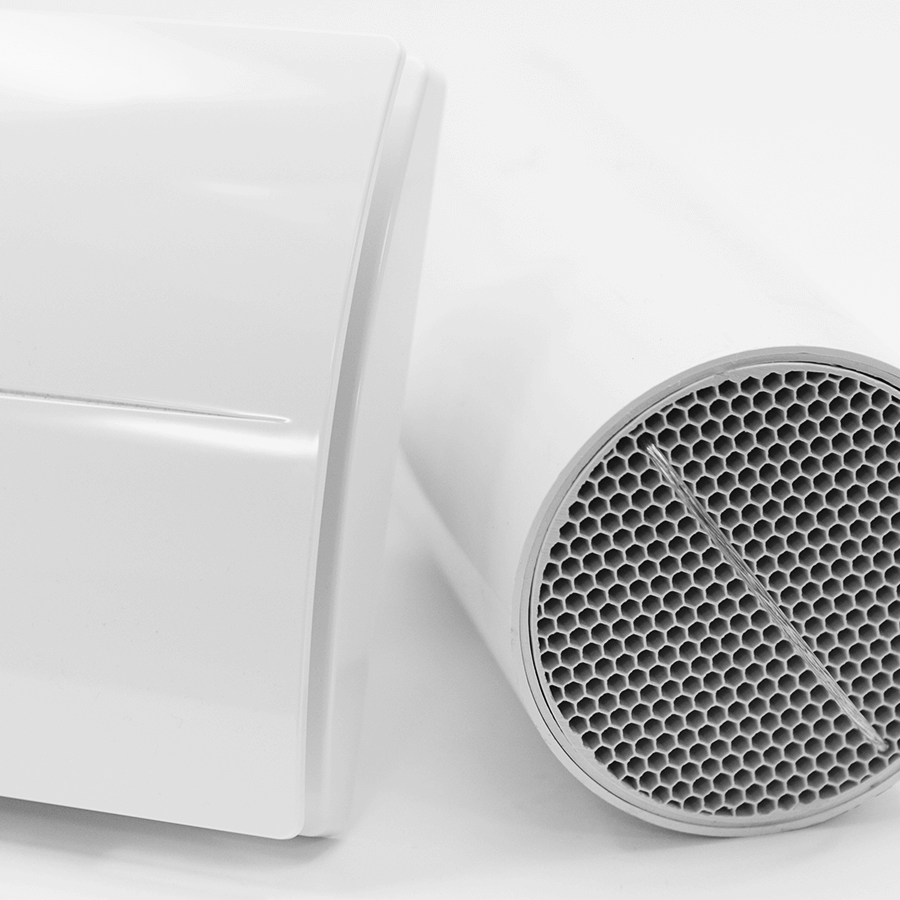

- Regenerative honeycombs ceramic heat exchanger.

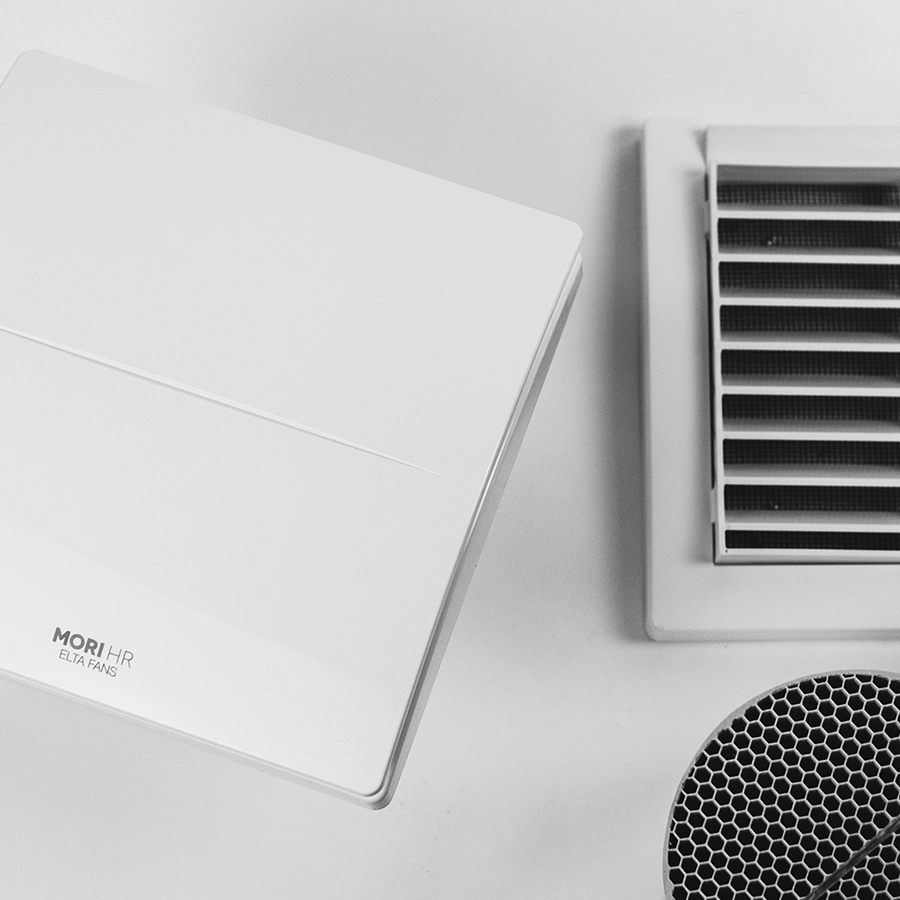

- External grille in high quality, impact and UV-resistant ABS colour RAL 9010.
- High efficiency aerodynamic fan with “winglet” blades to optimise quietness and efficiency.
- Single phase EC reversible Brushless motor with integral thermal protection.
- Motor mounted on high quality ball bearings.
- The unit is double insulated: no earth connection is required.
- Trickle speed selectable.
- Boost mode.
- Free-cooling (Bypass) mode.
- IPX4 degree of protection.
- Power supply 220V to 240V~ 50Hz.
This method of operation avoids the short circuiting of air that can often happen with conventional single room heat recovery units, resulting in much more effective room ventilation.
Units can also be set to work in harmony with each other e.g. when a unit in one room is extracting air another unit in another room can be set to supply air. This can greatly enhance cross ventilation and ventilation effectiveness in a home.
Elta Mori HR100 - Operation
- The device should not be used for applications other than those specified in this manual.
- After removing the product from its packaging, verify its condition. In case of doubt, contact a qualified technician. Do not leave packaging
within the reach of small children or people with disabilities. - Do not touch the appliance with wet or damp hands/feet.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Do not use the product in the presence of inflammable vapours, such as alcohol, insecticides, gasoline, etc…
- If any abnormalities in operation are detected, disconnect the device from the mains supply and contact a qualified technician immediately. Use
original spare parts only for repairs. - The electrical system to which the device is connected must comply with regulations.
- Before connecting the product to the power supply or the power outlet, ensure that:
– the data plate (voltage and frequency) correspond to those of the electrical mains
– the electrical power supply/socket is adequate for maximum device power. If not, contact a qualified technician. - The device should not be used as an activator for water heaters, stoves, etc., nor should it discharge into hot air/fume vent ducts deriving from
any type of combustion unit. It must expel air outside via its own special duct. - Operating temperature: -20°C up to +50°C.
- The device is designed to extract clean air only, i.e. without grease, soot, chemical or corrosive agents, or flammable or explosive mixtures.
- Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
- Do not immerse the device or its parts in water or other liquids.
- Only turn off the power supply to the unit whenever a malfunction is detected or in the case of inspection, cleaning or maintenance. Prolonged
and/or repeated power interruption to the unit (any period more than 72 hours) can create a health and safety hazard, damage components and
will invalidate any warranty. - For installation an omnipolar switch should be incorporated in the fixed wiring, in accordance with the wiring regulations, to provide a full
disconnection under overvoltage category III conditions (contact opening distance equal to or greater than 3mm). - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not obstruct the fan or exhaust grille to ensure optimum air passage.
- Ensure adequate air return/discharge into/from the room in compliance with existing regulations in order to ensure proper device operation.
- If the environment in which the product is installed also houses a fuel-operating device (water heater, methane stove etc., that is not a “sealed
chamber” type), it is essential to ensure adequate air intake, to ensure good combustion and proper equipment operation.
