Condensation

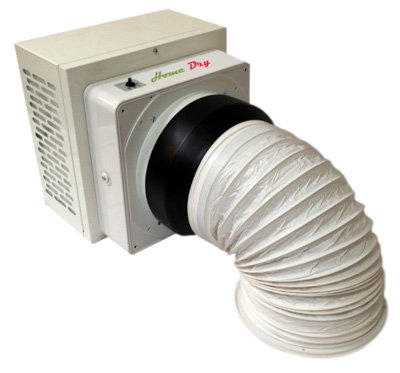

Whole House PIV (Positive Input Ventilation) Kit – Loft Mounted Unit

£220.00 ex VAT (£264.00 inc.)

147 in stock

Ideal for houses and dwelling that suffer with condensation, it can also help with the prevention of dry rot The Home Dry Positive Input Ventilation unit (or PIV unit) uses air displacement to ventilate a whole dwelling, improving indoor air quality and stopping or preventing condensation problems from occurring. Perfect for retrofit installation into existing properties, the Home Dry PIV Loft Unit is very easy to install. This is a full kit ready to go and includes -

  • Filter Housing
  • Fan
  • 2 x Jubilee clips
  • Ducking tube
  • diffuser
  • 4 x Foam Feet
read more

Compare

Description

Whole House PIV (Positive Input Ventilation) Full Kit – Loft Mounted Unit uses air displacement to ventilate a whole dwelling, improving indoor air quality and stopping or preventing condensation problems from occurring.  Perfect for retrofit installation into existing properties, the Whole House PIV (Positive Input Ventilation) Full Kitt is very easy to install.

A single fan unit mounted in the roof space supplies fresh, filtered air into the dwelling via a central hallway or landing.  This creates a slight positive air pressure which forces stale, moisture-laden air out via fortuitous air gaps and natural leakage.

The ceiling diffuser has been aerodynamically designed to direct incoming air along the ceiling where it mixes with warm, buoyant air before re-circulating downwards, thereby ensuring a more even thermal gradient between the floor and ceiling.

Perfect for retrofit installation into existing properties, the Whole House PIV (Positive Input Ventilation) Full Kit is very easy to install.

This is a full kit ready to go and includes –

  • Filter Housing
  • Fan
  • 2 x Jubilee clips
  • Ducking tube
  • Defuser
  • 4 x Foam Feet

APPLICATIONS

Due to its ease of installation, the HomeDry PIV Loft Unit is designed primarily for properties that benefit from a well ventilated loft space.

Features and Benefits

Energy Saving : Supply-air taken from the roof space is slightly warmer than outside air so can provide some energy saving compared with a conventional extract system.

Simple and Easy Installation : Requires only a single electrical connection. Does not require ducting through the interior spaces.

Low Running Costs : With its DC fan, the HomeDry PIV Loft Unit is extremely energy efficient, costing from as little as 1pence a day to run.

Minimal Maintenance : Replacement of the long-life filter is only required every 5 years (if extremely soiled) otherwise you can hand wash in warm water and hang-dry.

Aerodynamically designed diffuser : The diffuser is designed to direct incoming air along the ceiling, thereby mixing with, re-using and re-circulating high level warm air.

System Installation

A full installation guide is supplied with each system.  The ceiling must be as airtight as possible to minimize re-circulation of air from within the dwelling.  Roof space must be ventilated from outside, e.g. by eaves vents.

Energy Performance

The HomeDry PIV Loft Unit incorporates an extremely low wattage DC motor, minimizing energy usage and should be installed to a fused spur (using a 3 amp fuse).

There are other health benefits connected with PIV technology.The following can be reduced significantly such as…

  • Respiratory problems (Asthma etc)
  • Allergies (Pets, Pollen etc)
  • Odours
  • Dust Mites
