Aqua Channel Drain x 2 Metre (Pack Of 4)

£66.32 ex VAT (£79.58 inc.)

Water enters the channel through the pre-drilled holes and is then diverted to a suitable drainage point, either natural (gravity fed) or mechanical (sump and pump). The channel is particularly suited for use as part of a cavity drain membrane system. Water entering the building through walls or curved soffits is then controlled behind the membrane and diverted to the Aqua Channel conduit which is fitted at the base of the wall. The standard Aqua Channel conduit is supplied with an upstand that is placed against the wall. If required it can be supplied without the upstand for when the Aqua Channel is to be offset from the wall.

  • 2M lengths x 4
  • Allows you to transfer water around the basement to wherever you need it
  • Holes placed to collect the maximum amount needed
  • Up stand allows you to fit membrane easily to it
read more

Compare

SKU:
PAMAQUA1LENGTH-4x2
Brand:
Pam Ties
view all details

Description

Aqua Channel – 4 x 2 Metre Lengths

Aqua Channel Drain x 2 Metre (Pack Of 4) 1

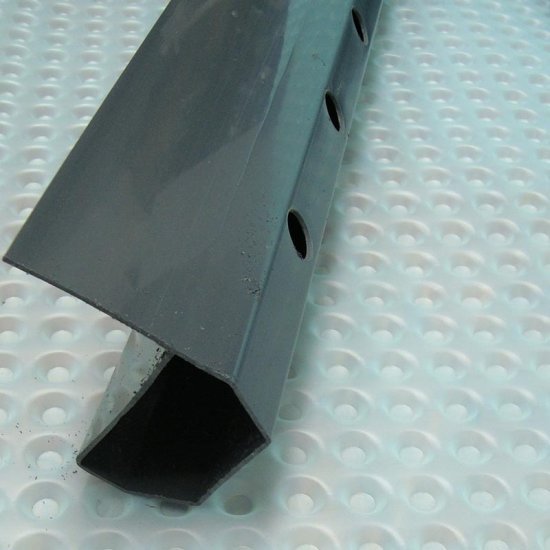

Aqua Channel is a PVC drainage conduit that has been specifically designed for the control of water ingress in below ground situations. The channel is pre-formed in a pentagonal shape with pre-drilled 19mm drainage holes set at 70mm along its length. It is designed to be fitted around the periphery of an internal floor at the vulnerable wall/floor junction and can be used in most waterproofing situations.

Water enters the channel through the pre-drilled holes and is then diverted to a suitable drainage point, either natural (gravity fed) or mechanical (sump and pump). The channel is particularly suited for use as part of a cavity drain membrane system. Water entering the building through walls or curved soffits is then controlled behind the membrane and diverted to the Aqua Channel conduit which is fitted at the base of the wall.

The standard Aqua Channel conduit is supplied with an upstand that is placed against the wall. If required it can be supplied without the upstand for when the Aqua Channel is to be offset from the wall.

  • 2M lengths
  • Allows you to transfer water around the basement to wherever you need it
  • Holes placed to collect the maximum amount needed
  • Up stand allows you to fit membrane easily to it

We have a number of accessories available for the PAM Aqua Channel, which include End Outlet, Corner Piece, In-Line T-Piece and Aqua Channel connector.
